Electric Stacker MONO for 1,6m

Pallit
4.990,00 € 5.988,00 € VAT included
5
Five year warranty

Free delivery: 30 March

With this all-electric low cost pallet stacker with initial lift it is possible to increase the ground clearance under the forks to 120 mm as well as load and move two pallets at the same time. It is ideal for loading and unloading trucks on loading ramps. The monomast provides an unobstructed view of the load and the surroundings, and lifts max. 1000 kg up to 120 mm height. The necessary stability is provided by a torsion-resistant steel construction and two rollers made of durable polyurethan areas of application. One of its clear strengths is the loading and unloading of lorries, as thanks to the initial lift it not only masters driving over thresholds, loading bridges and drive-over plates without any problems, but can also do this in no time at all thanks to the possibility of double pallet transport. This electric stacker can be used in trucks with low ceilings due to its low total height - only 2060 mm when the initial lift is fully extended and a maximum lifting height of 1600 mm. Narrow corridors and shelf aisles are also no problem for the truck thanks to its compact design. In creep mode, the truck can also be driven with the tiller in the upright position.

SKU 10010163-248

Specifications

  • Capacity
    Fork length
    Height, extended
    Height, lowered
    Lift height
    Mast type
    Length
    Turning radius
    Weight
    Wheels material
    Width
    Battery capacity
    Battery type
    Fork roller type
    Fork width, single fork
    Free lift
    Ground clearance
    Operating time
    Available from
    Price

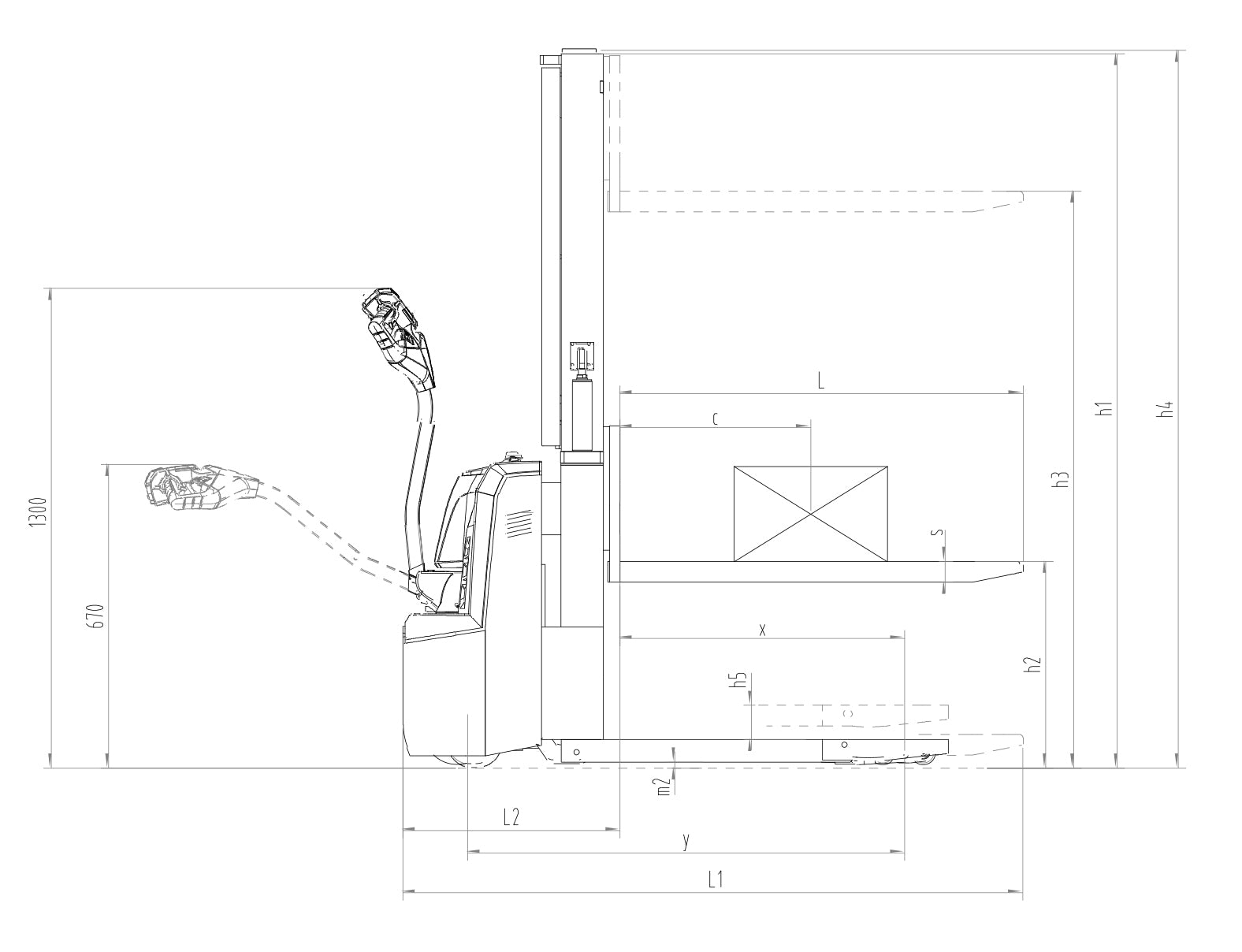

  • electric stacker 1,6 m image 1
    1000 kg
    1150 mm
    2060 mm
    2050 mm
    1600 mm
    Mono
    1690 mm
    1450 mm
    640 kg
    polyurethan
    800 mm
    105 Ah
    gel
    tandem
    180 mm
    yes
    17 mm
    4 h
    30 March
    4.990,00 € 5.988,00 € VAT included
