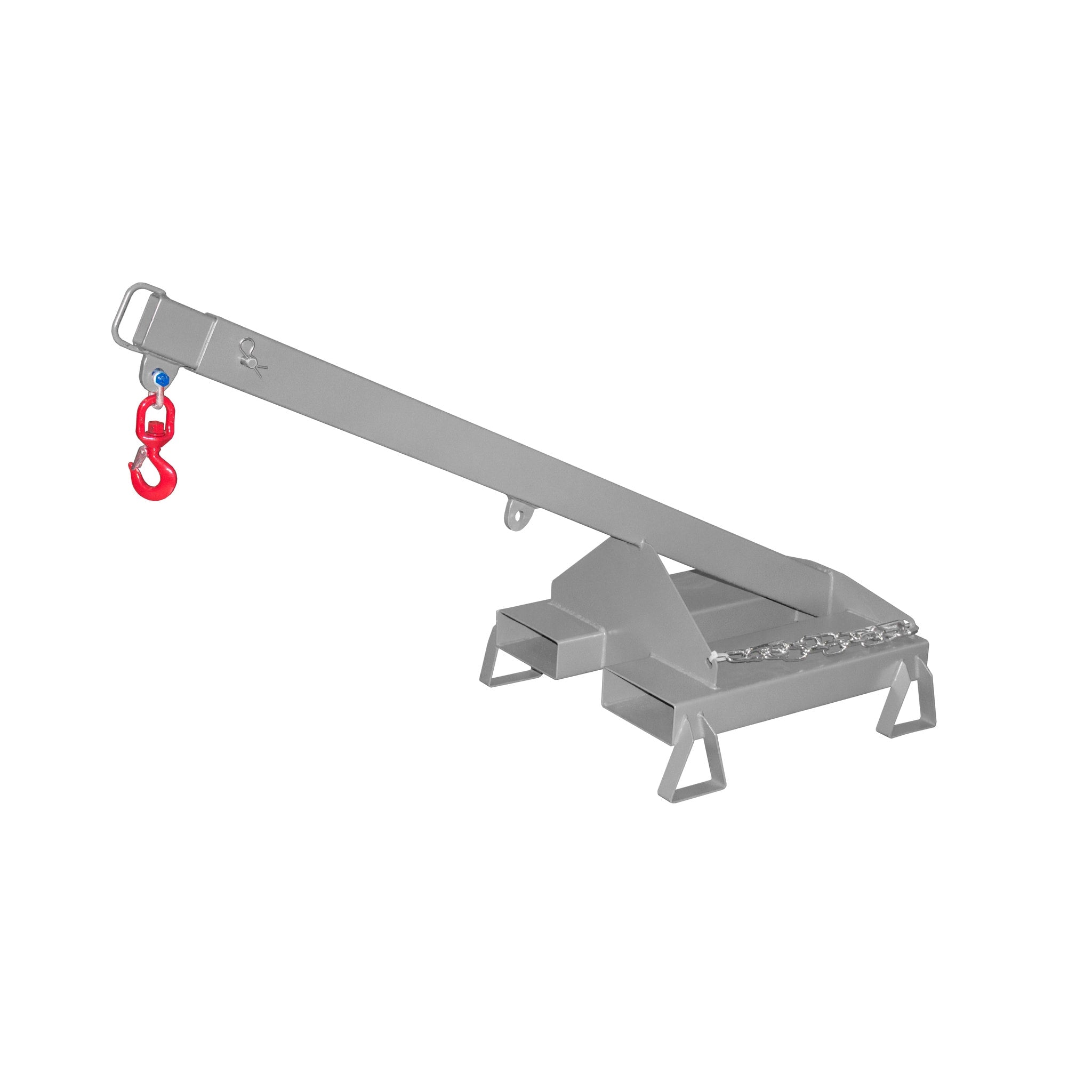

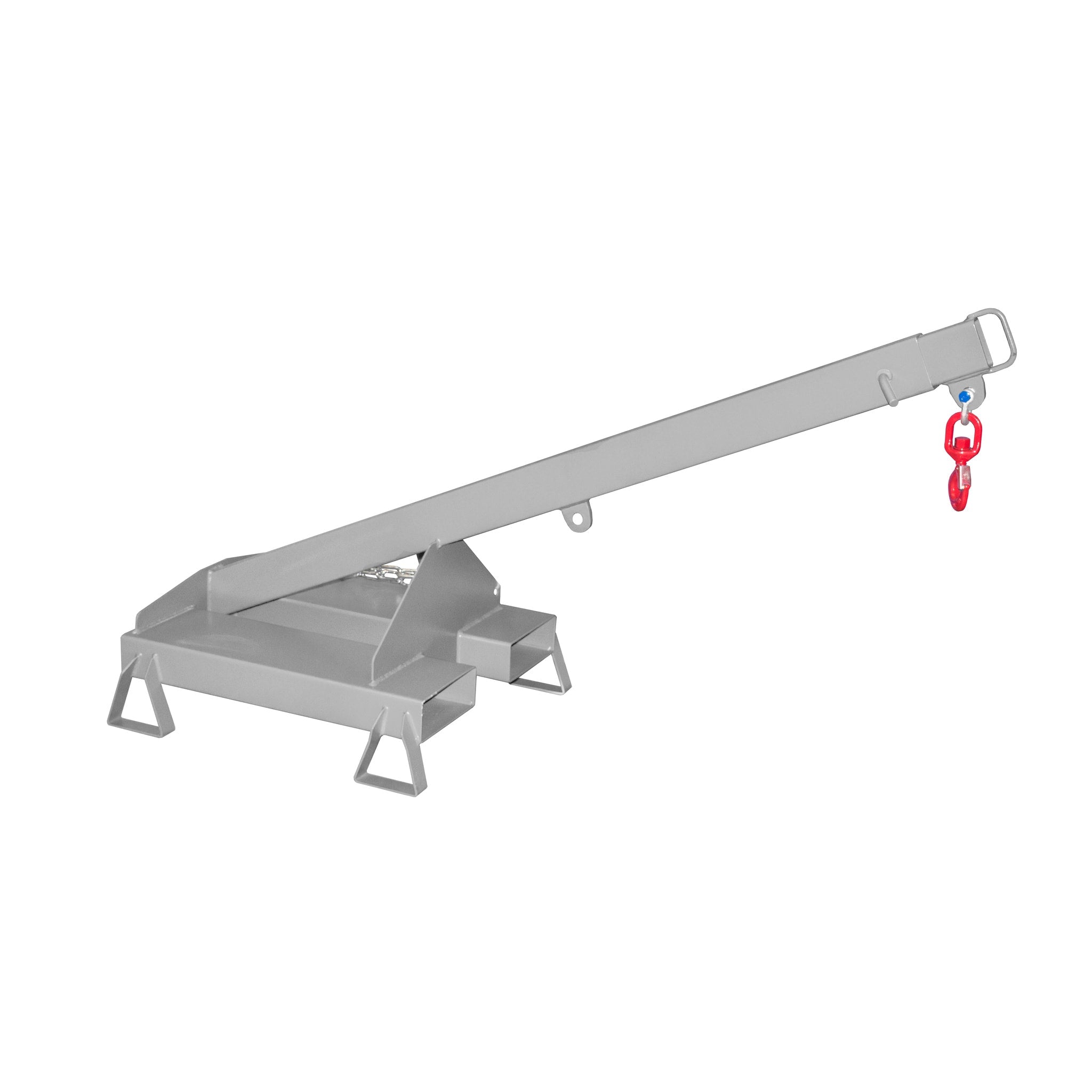

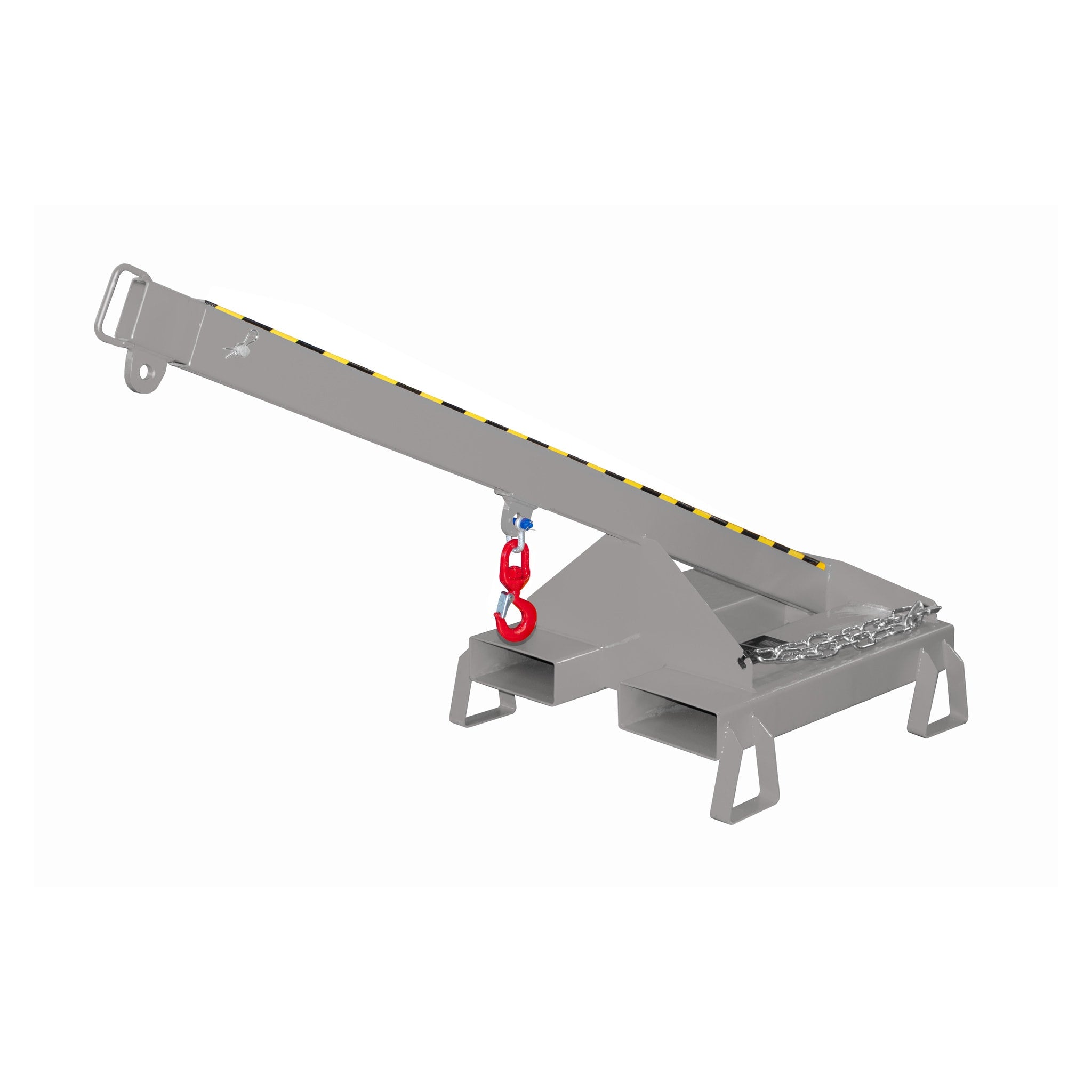

Forklift crane load arm with 25° for 2500 mm from Bauer
0800 000 96 25The Bauer LAT load arm with an inclination of 25° is ideal for precise lifting work. The telescopic boom reaches up to a maximum of 2,500 mm.
- Load capacity: Up to 1,000 kg capacity
- Design: Rigid model with 7 possible positions for swivel hooks with locking pin
- Range: Telescopic up to 2.5 m (basic length: 1,600 mm)
- Mounting: 100 mm clearance thanks to support feet
- Safety: Chain lock prevents accidental slipping during transport
Technical data
General
Capacity
1000
kg
Weight
62
kg
Material
steel
Colour
Gray
Jib arm length, min.
875
mm
Jib arm length, max.
2500
mm
Extendable
7x
Brand
Bauer
Product ID
12190115-0
Delivery
Delivered as
on pallet
Dimensions
-
Length1600 mml1
-
Fork pocket width220 mm
-
Fork pocket height80 mm
-
Fork pockets gap160 mm
