Mini Electric Hoist

69,00 € 82,80 € VAT included

Free delivery: 2021-09-30

SKU 10005214-311

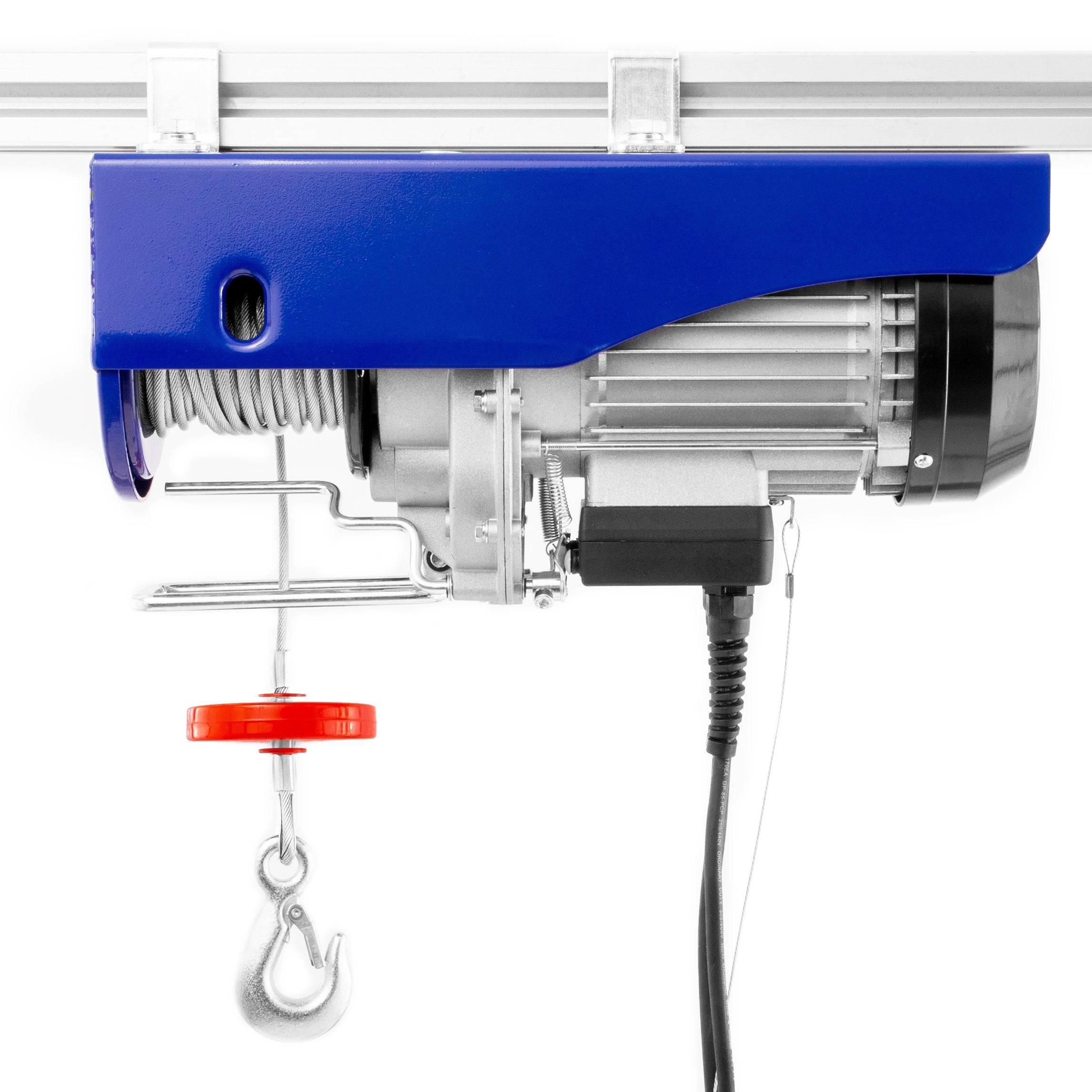

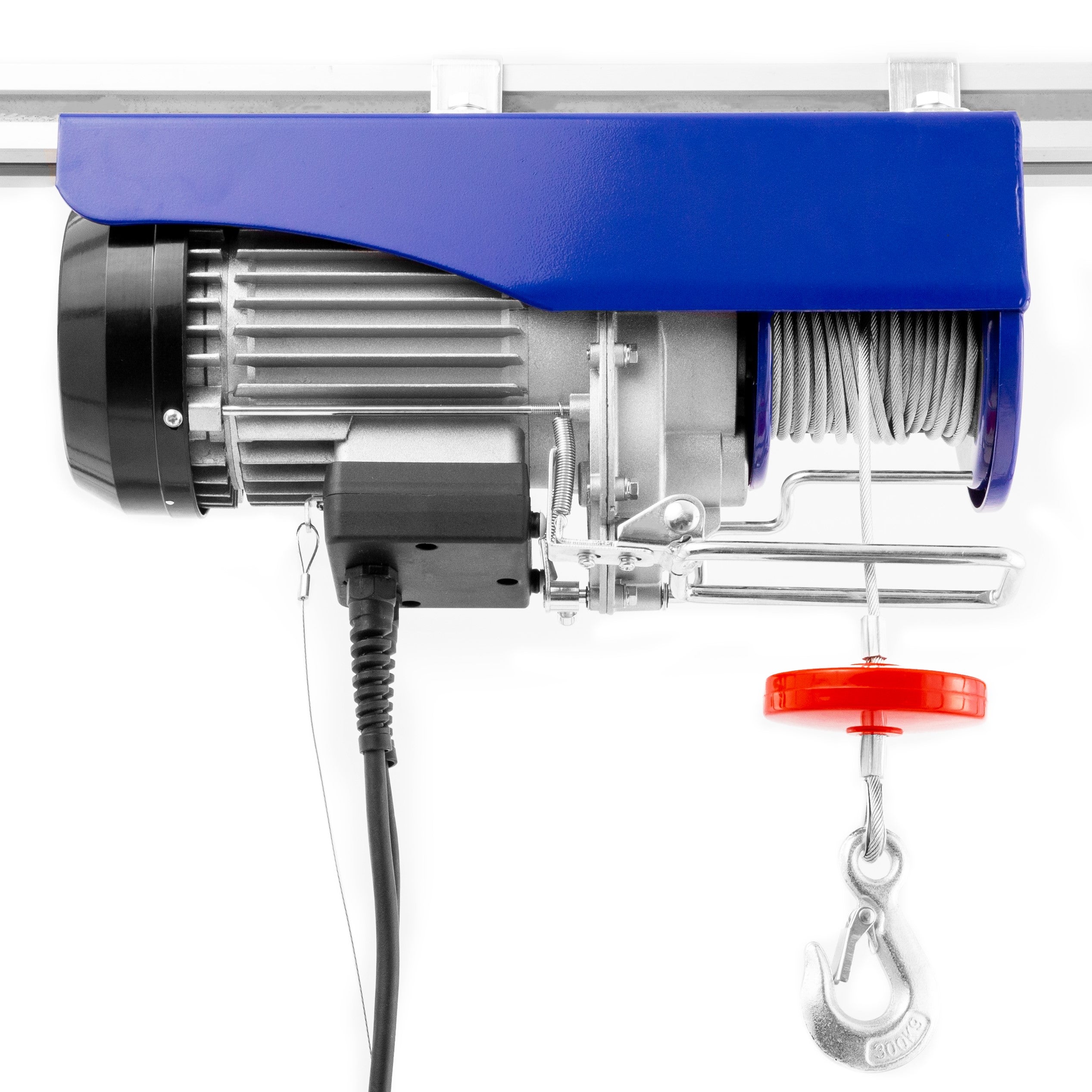

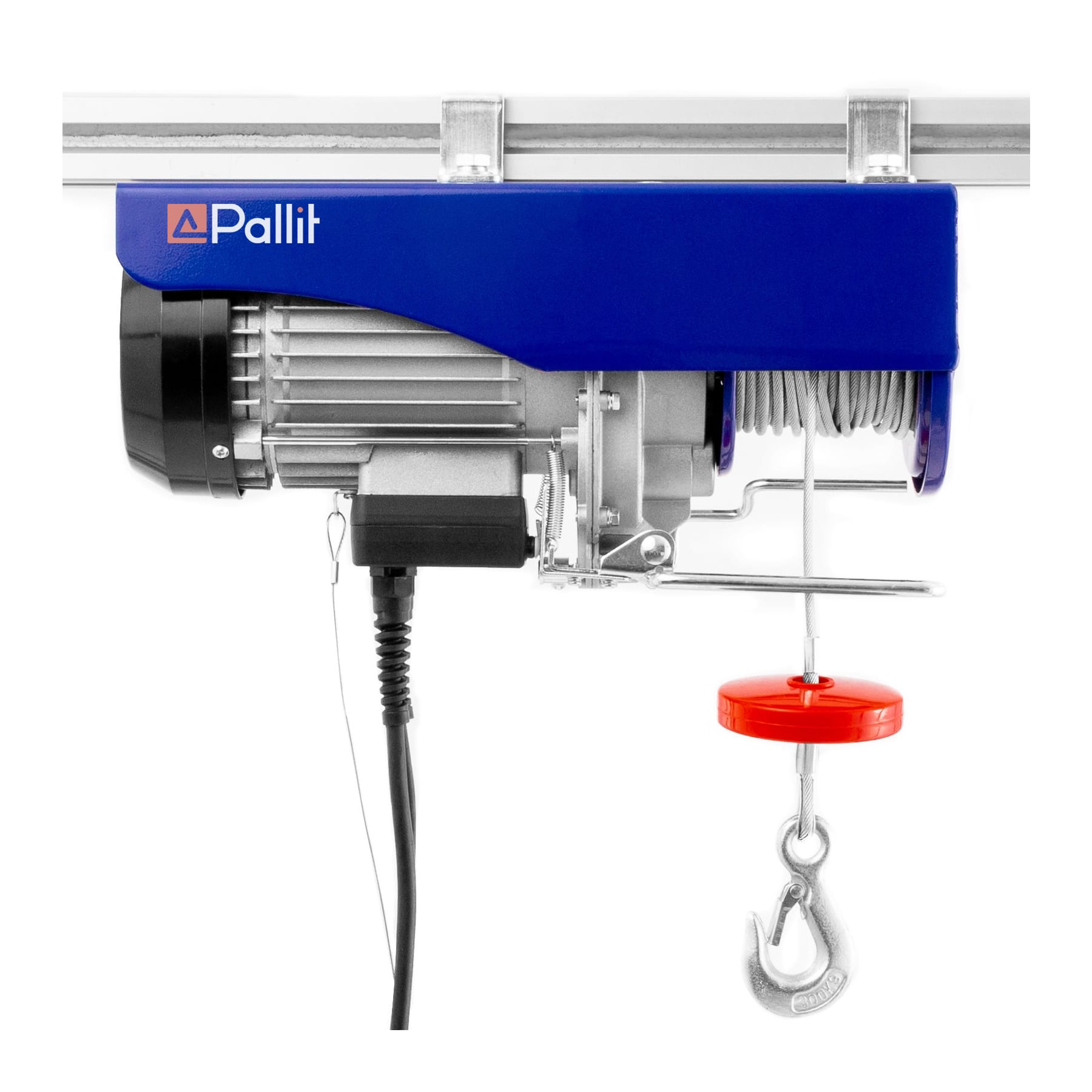

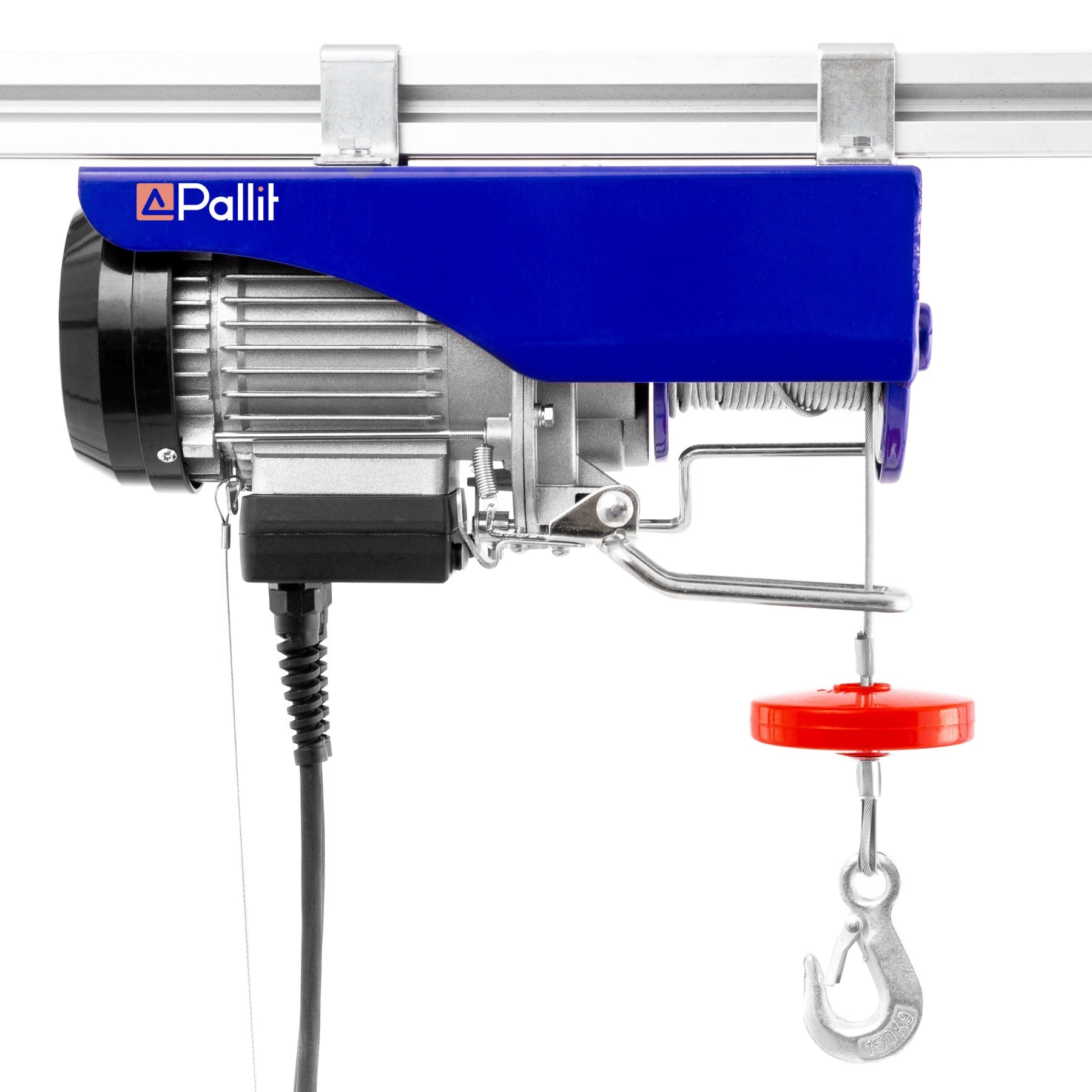

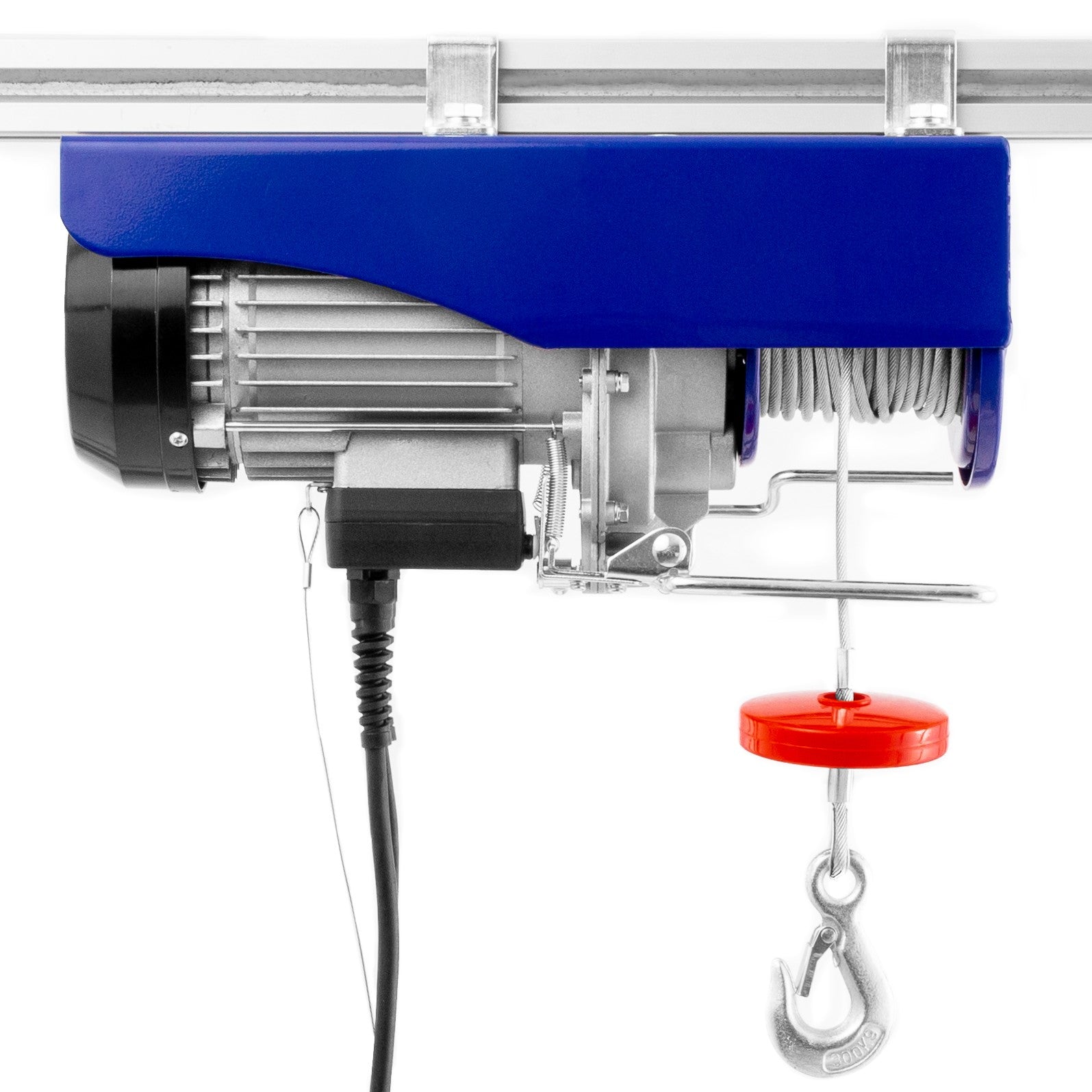

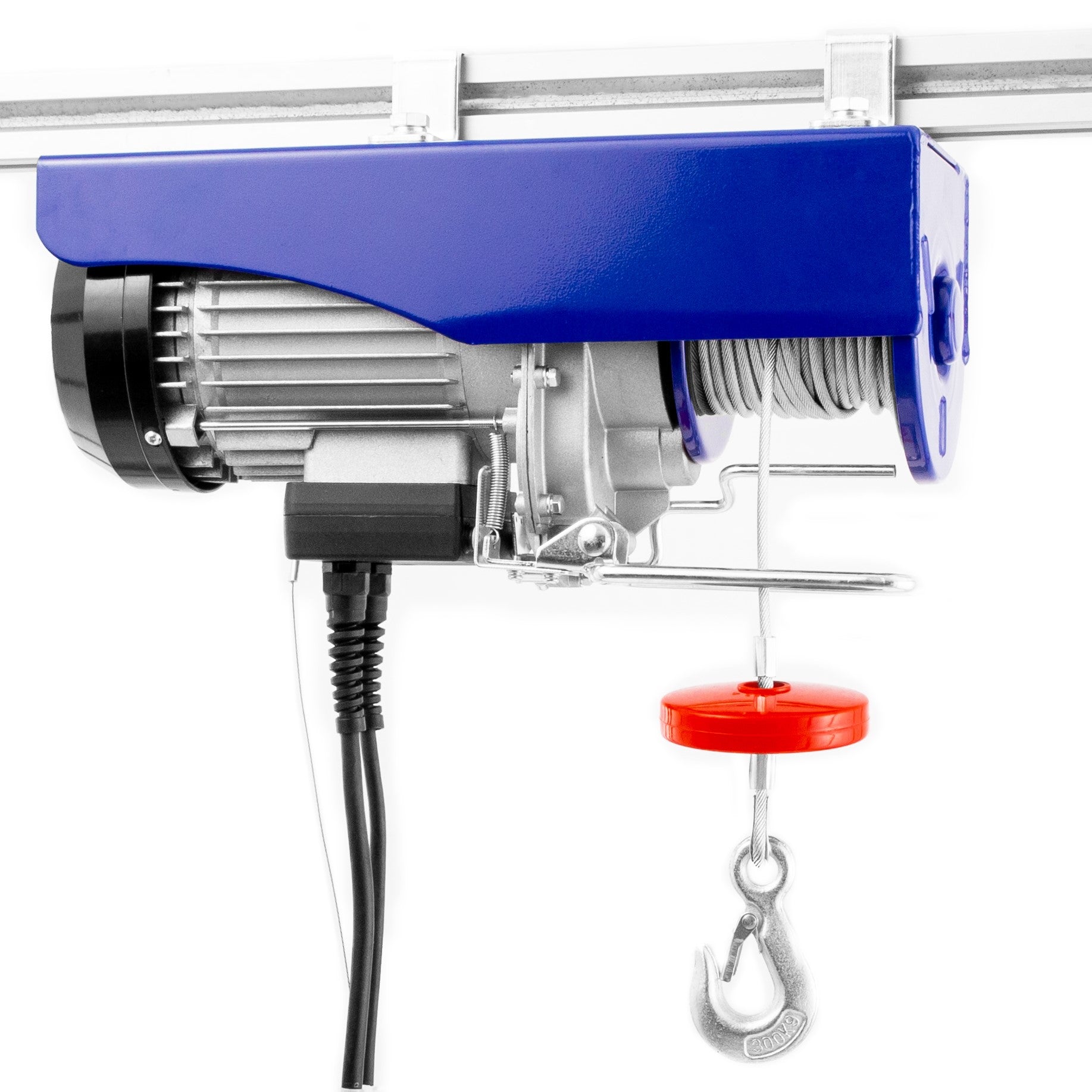

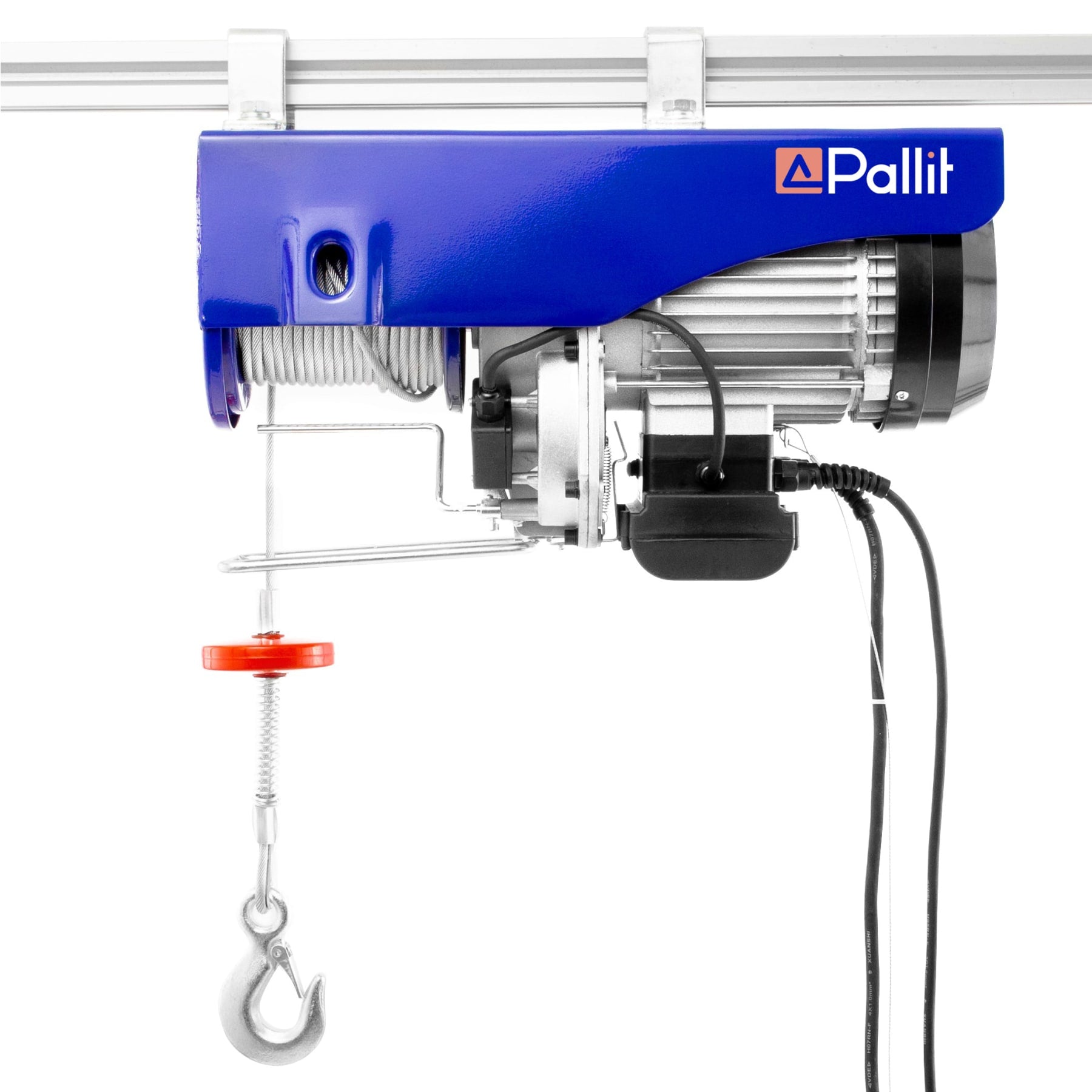

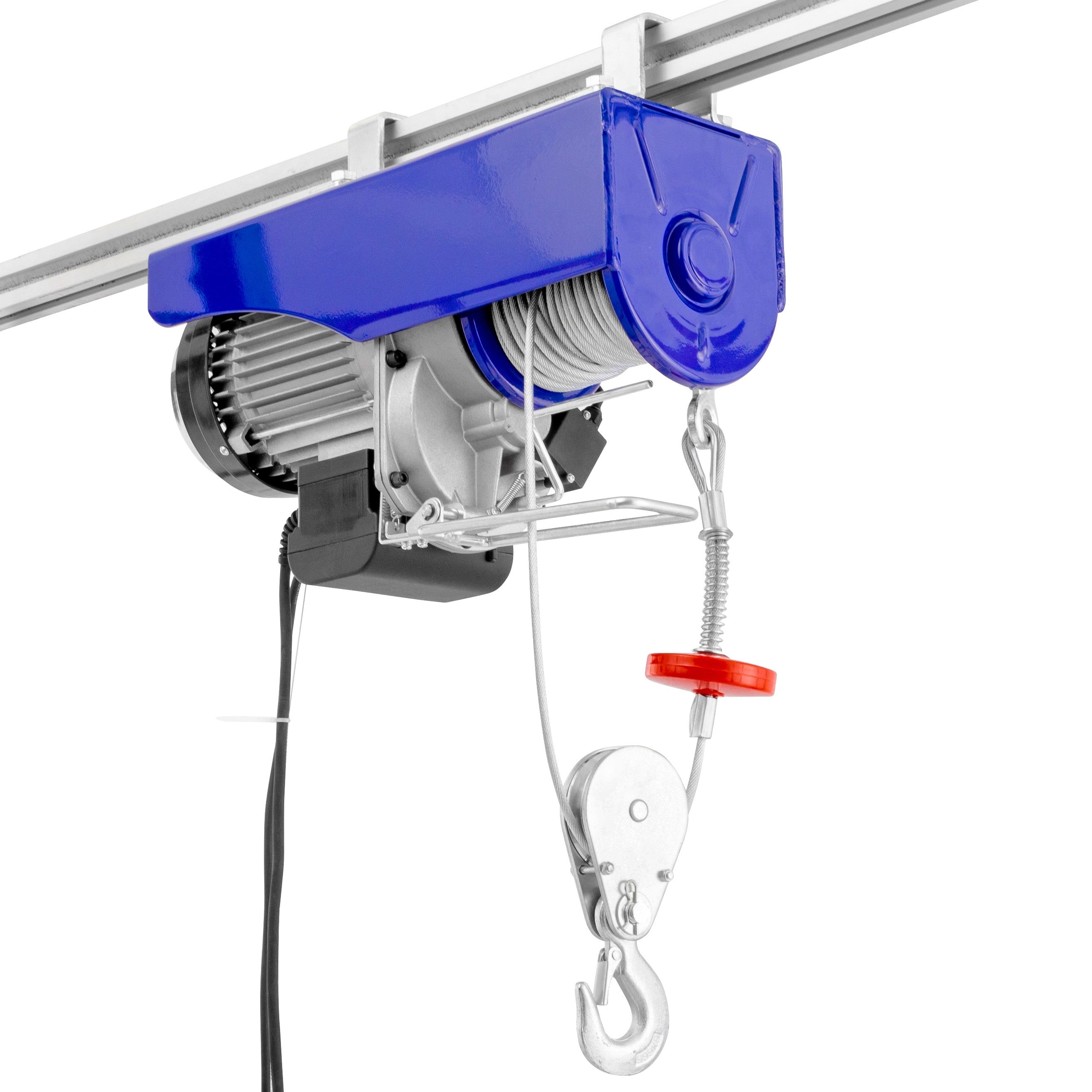

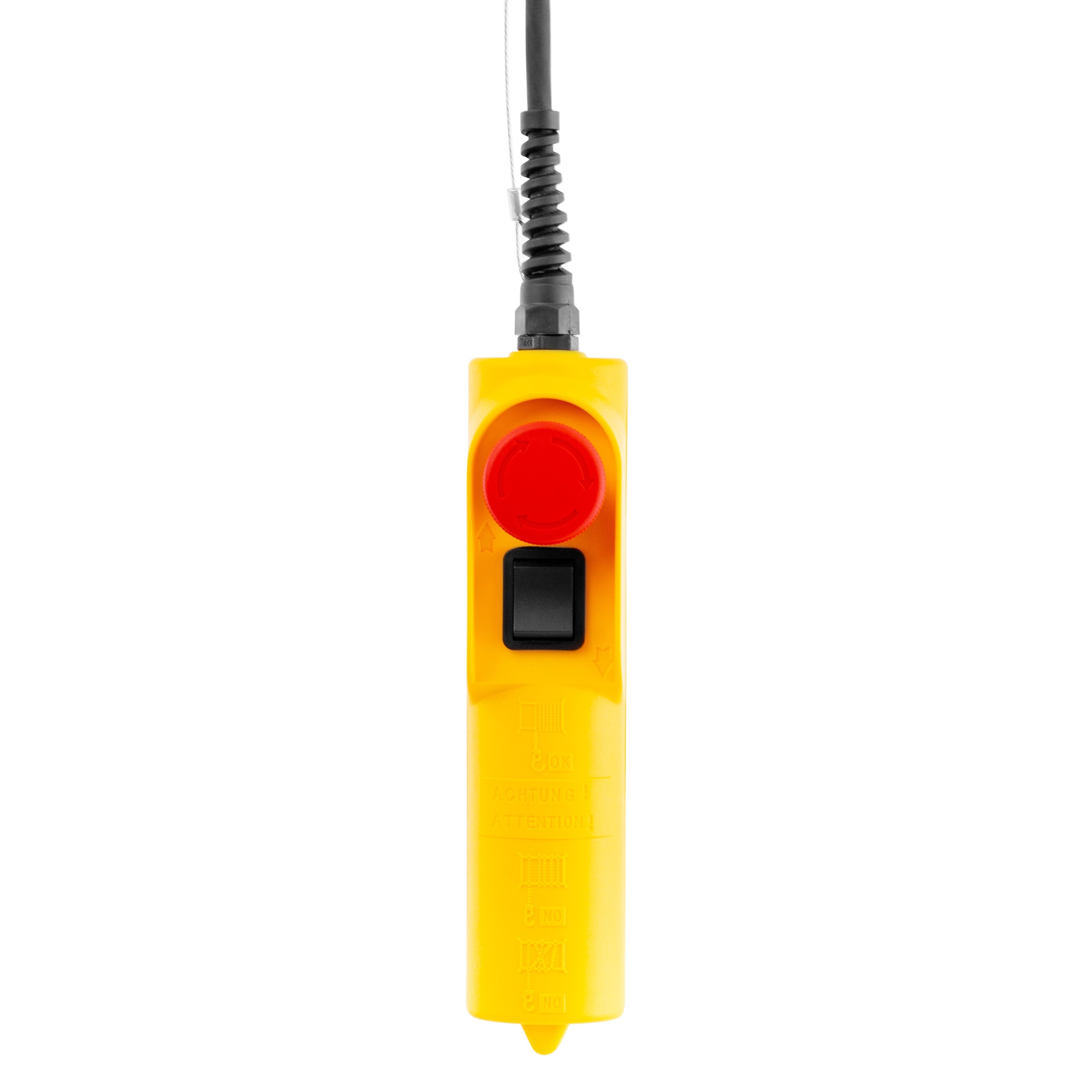

This electric cable hoist is suited for lifting loads, whether in the workshop, in the house or in the garden. It doesnt matter whether you want to lift building materials or car body parts, the electric cable winch is multifunctional and can be used in many ways. The weight of the unit is a light 10 kg. The assembly is quick and uncomplicated via the supplied mounting brackets. The powerful motor with 500 W power is equipped with overheating protection to prevent damage to the motor. The safety cut-out on the device ensures a shutdown as soon as the rope has been completely retracted. In order to operate the winch, it is equipped with a remote control, which is attached to the unit with a cable. There is also an emergency stop switch to stop the unit immediately in dangerous situations. The hoist lifts loads at a speed of 8 m/min (single hook) or 4,0 m/min (double hook). The winch is controlled via a remote control with a cable length of 1,6 m.

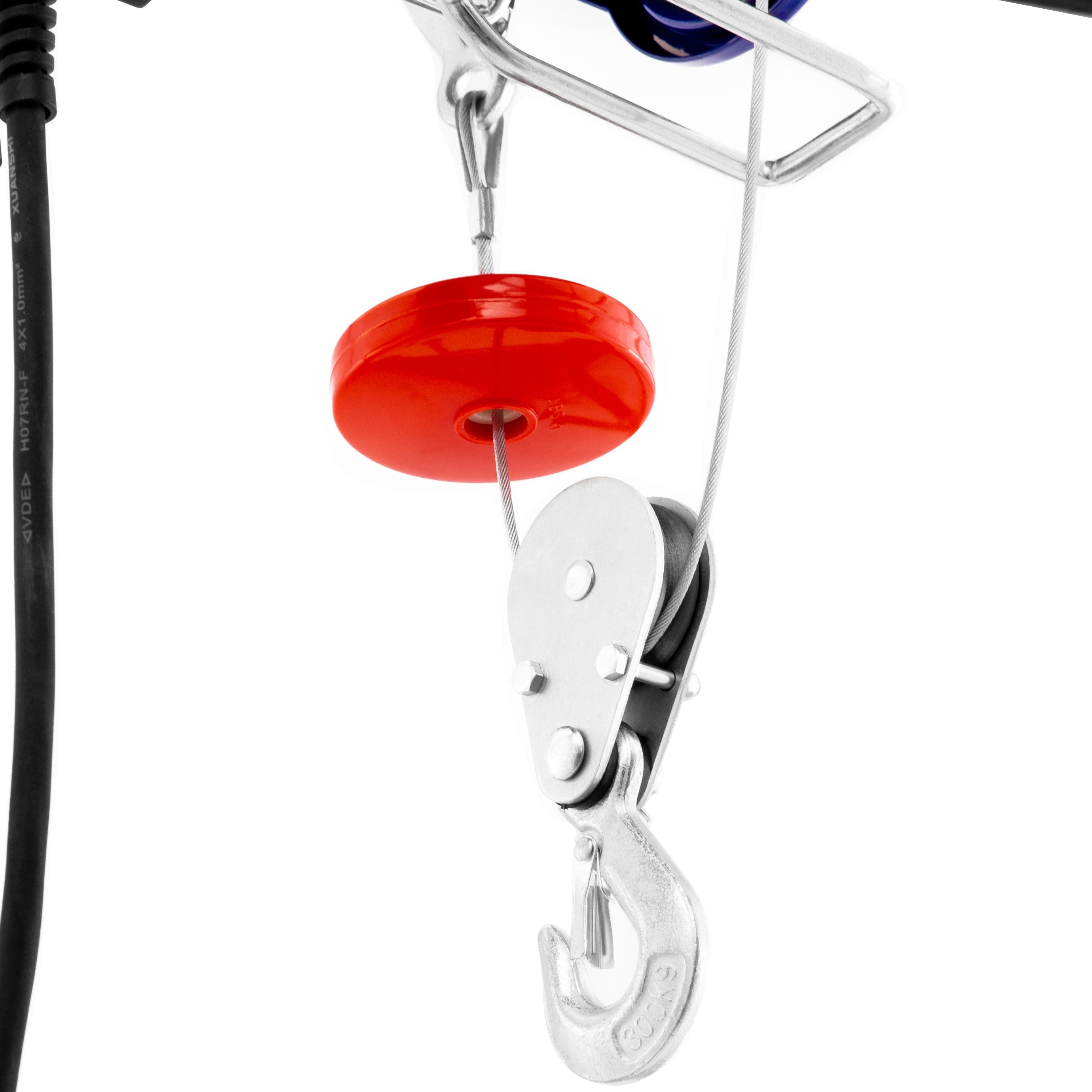

  • Load capacity (single/double hook): from 50/100 kg up to 500/1000 kg
  • Height (single/double hook): 12 m / 6 m
  • Lifting speed (single/double hook): 8 m/min 4,0 m/min
  • Rated voltage: 230 V
  • Protection class: IP54
  • Steel rope diameter: 3 mm

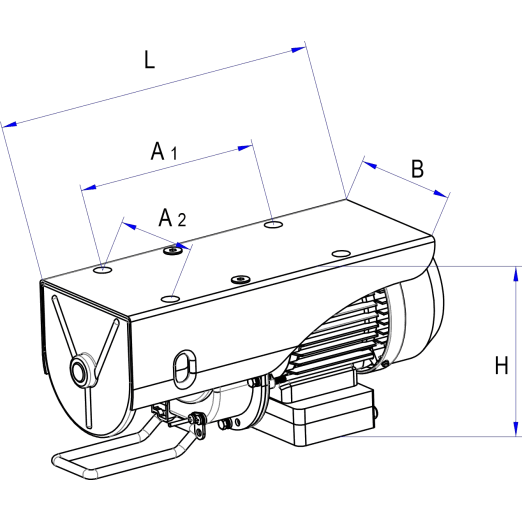

Specifications

  • colour
    height
    material
    weight
    width
    Available from
    Price
  • mini electric hoist image 1
    ultramarine blue
    250 mm
    steel
    4,9 kg
    94 mm
    2021-09-30
    from 69,00 € 82,80 € VAT included
